Lecture Notes
Click here for the latest
notes.
Chapter
1 Introduction
Readings: All Sections.
Slides:
http://csc.csudh.edu/suchenek/CSC341/ch1MS.pdf
Hardware requirements:
1. A von Neuman interrupt-driven architecture
2. Dual mode of execution
3. Absolute and relative addressing modes:
- base register for program
- limit register for program
- base register for data
- limit register for data
4. Direct Memory Access (DMA) controller
How an interrupt is
processed by the CPU:
http://csc.csudh.edu/suchenek/CSC341/Implementation_of_interrupts.txt
Chapter 2 Operating-System Structures
Readings: Sections 2.1, 2.2, 2.3, 2.4.
Slides:
http://csc.csudh.edu/suchenek/CSC341/ch2MS.pdf
Chapter 3 Processes
Readings: Sections 3.1, 3.2, 3.3, 3.4.
Slides (corrected): last modified March 7, 2018
http://csc.csudh.edu/suchenek/CSC341/ch3MS.pdf

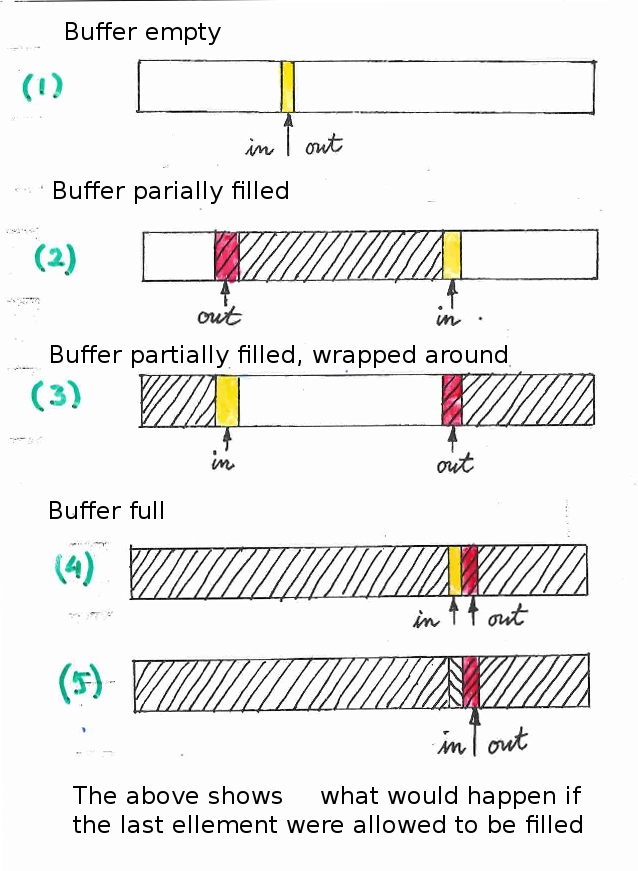

Here are drawings of 5 scenarios in the circular buffer between Producer and Consumer (Section 3.4.1):
http://csc.csudh.edu/suchenek/CSC341/Circular_buffer.jpg
The lined area shows non-consumed productions.
(1) empty buffer
(2) non-empty buffer with out < in
(3)
non-empty buffer with in < out ; this happens after the buffer
"wrapped around" as a result of a sequence of productions and
consumptions
(4) only one free slot left in the buffer
(5) buffer full

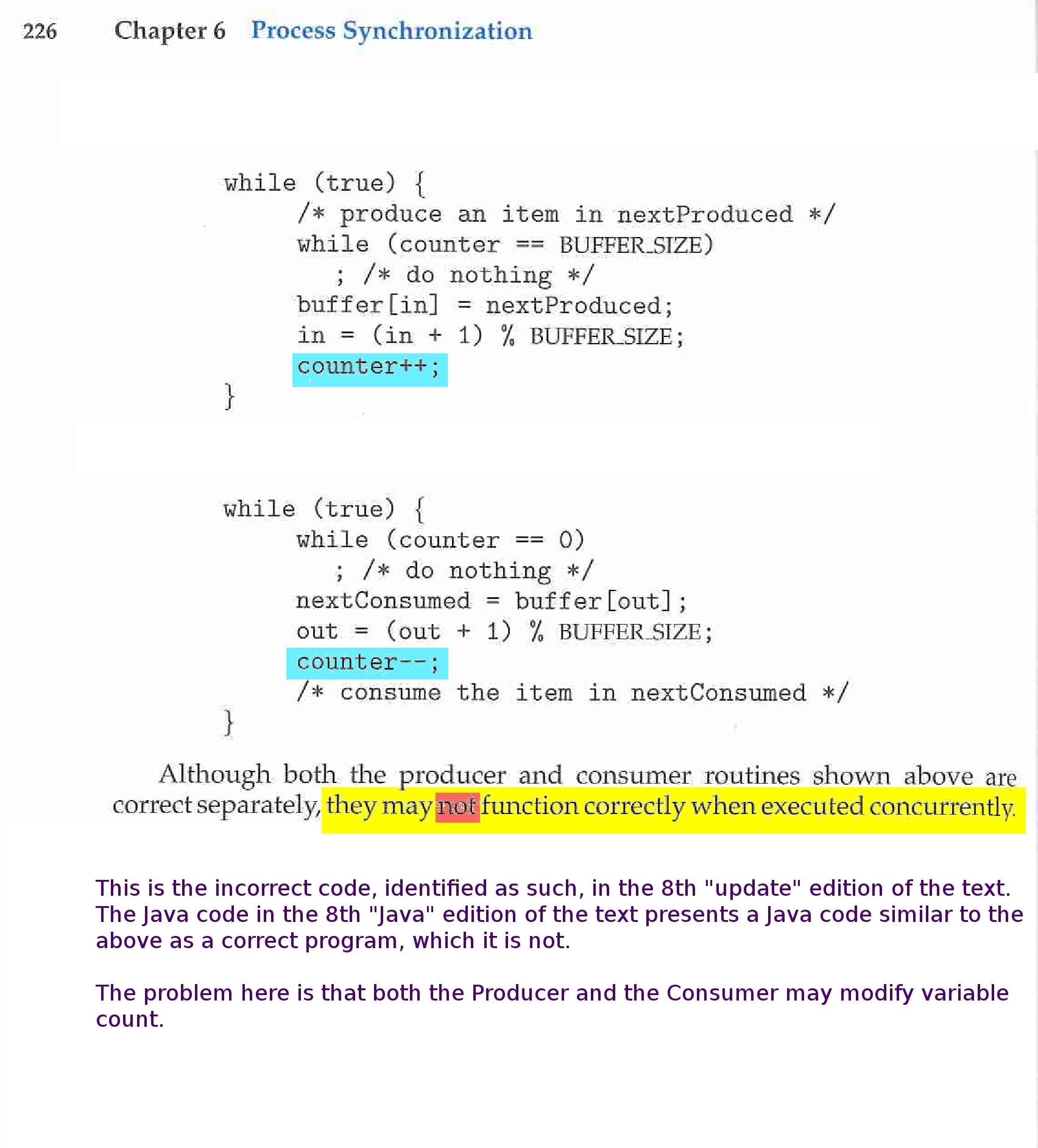

The following are comments regarding incorrect versions of Producer and Consumer code in previous editions and versions of the text. They are optional for all students.
Chapter 4 Threads
Readings: Sections 4.1, 4.2, 4.3, 4.6.5, 4.8.
Slides:
http://csc.csudh.edu/suchenek/CSC341/ch4MS.pdf
Chapter 5 Process Synchronization
Readings: Sections 5.1, 5.2, 5.3, 5.4, 5.5, 5.6, 5.7, 5.8, 5.11.
Slides (corrected and modified by Dr. MS): last modified March 7, 2018
http://csc.csudh.edu/suchenek/CSC341/ch5MS.pdf
Conditional semaphore:
http://csc.csudh.edu/suchenek/CSC341/COND_SEMAPHORE.TXT
Deadlocks:
Slides Sec 5.11 (corrected and modified by Dr. MS): last modified March 7, 2018
http://csc.csudh.edu/suchenek/CSC341/ch5aMS.pdf
Chapter 6 CPU Scheduling
Readings: Sections 6.1, 6.2, 6.3, 6.8.
Slides (corrected and modified by Dr. MS):
http://csc.csudh.edu/suchenek/CSC341/ch6MS.pdf
Copyrighted material, so the students in this class can read it but not to copy or distribute it. Formulas for average waiting time: http://csc.csudh.edu/suchenek/CSC341/WatingTime.pdf
Pitfalls of scheduling:
http://csc.csudh.edu/suchenek/CSC341/scheduling.pdf
Chapter 7 Main Memory
Readings: Sections 7.1, 7.2, 7.3, 7.4, 7.5, 7.6.
Slides (corrected and modified by Dr. MS):
http://csc.csudh.edu/suchenek/CSC341/ch7MS.pdf
http://csc.csudh.edu/suchenek/CSC341/Paging.pdf
Chapter 8 Virtual Memory
Readings: Sections 8.1, 8.2, 8.4, 8.5.1, 8.5.2, 8.5.3, 8.6.1, 8.7.1.
Slides (corrected and modified by Dr. MS):
http://csc.csudh.edu/suchenek/CSC341/ch8MS.pdf
http://csc.csudh.edu/suchenek/CSC341/Frame_allocation.pdf
Optional readings
on VMS operating system and VAX minicompters by Digital Equipment
Corporation (which now belong mostly to the history of computation):
"VMS
is an operating system build for the (Virtual Address eXtension) VAX
instruction set hardware in the late 1970s [VAX-11/780 released on
October 25, 1977].
VMS was one of the first major operating systems to support
virtual memory [demand paging implementation of it, to be more precise], 32 bit address space, 128 bit floating point number
precision, and a complex instruction set."
Chapter 9 Mass-Storage Structure
Readings: Sections 9.1, 9.2, 9.3, 9.4, 9.5, 9.7, and the following material (not in the textbook)
http://csc.csudh.edu/suchenek/CSC341/Disk_utilization_otimization_slides.pdf
Exercise related to the above material is posted here.
Slides:
http://csc.csudh.edu/suchenek/CSC341/ch9MS.pdf
Copyrighted material for in-class use only: Optional read a propos falling prices of computer memory and other digital products, see section Global Aspects, pages 13 - 16:
http://csc.csudh.edu/suchenek/CSC341/PatentsForSoftwareArticle.pdf
New: Enhanced evaluation of seek times of four disk-scheduling algorithms:
http://csc.csudh.edu/suchenek/CSC341/Seek_times_exactly_slides.pdf
Probabilities for RAIDs
http://csc.csudh.edu/suchenek/CSC341/RAID_fail.pdf
Chapter 10 File-System Interface
Readings: Sections: 10.1, 10.2, 10.3, 10.4, 10.5., optional: 10.6.
Slides (corrected and modified by Dr. MS): http://csc.csudh.edu/suchenek/CSC341/ch10MS.pdf
Chapter 11 File-System Implementation
Readings: Sections: 11.1, 11.2.1, 11.3, 11.4, 11.5.1, 11.5.2, 11.5.3, 11.5.4; optional: 11.8.
Slides (corrected and modified by Dr. MS): http://csc.csudh.edu/suchenek/CSC341/ch11MS.pdf
Chapter 12 I/O Systems
Readings: TBA.
Slides (corrected and modified by Dr. MS): http://csc.csudh.edu/suchenek/CSC341/ch12.pdf
Chapter 13 Protection
Readings: TBA.
Slides (corrected and modified by Dr. MS): http://csc.csudh.edu/suchenek/CSC341/ch13.pdf
Chapter 14 Security
Readings: Sections 14.1, 14.2, 14.4, (skip 14.4.1.1 and 14.4.3).
Slides:
http://csc.csudh.edu/suchenek/CSC341/ch14MS.pdf
