Lecture Notes

These Lecture Notes are subject to change as I will cover the course material. You are welcome to read them in advance, but by doing so you accept the risk that the notes you have read might have been changed or deleted.

Click here for the current posting.

Use of Mathematica by the students is strongly recommended (but not required).

Here are my slides on how to use Mathematica help:

http://csc.csudh.edu/suchenek/CSC311/Slides/Mathematica_instructions.pdf

January 20, 2015

Here is a link to slides, Appendix B:

http://csc.csudh.edu/suchenek/CSC311/AppB_excerpts_comments.pdf

and

http://csc.csudh.edu/suchenek/CSC311/Slides/AppA.pdf
Slides: http://csc.csudh.edu/suchenek/CSC311/Def_big_Oh_big_Theta_slides.pdf
It's a copyrighted material, so the students in this class can read them but not to copy or distribute them.

The main objective of this chapter (big "oh" notation and related issues) is to introduce a mathematical tool that would allow for meaningful evaluation of performance of future programs.

Telling the efficient (whatever it means) programs from inefficient ones is about as important as telling high-yield investments from low-yield investments.

An invalid claim that a solution to a sluggish program is to run it on a faster computer is about as "rational" as an advise that in order to increase yield on low-yield investment one needs to invest more money in that sluggish enterprise.

Because we are talking future and predictions, we must use an abstract (implementation- and technology-independent) "yardstick" with which to measure program's performance as a function of the size of its input.

Examples of abstract "yardstick":

an unspecified "running time",

number of times all the innermost loops have been traversed,

number of memory accesses,

number of (bytes of) external transfers.

One can use similar method to evaluate the space performance (memory demand) of a program.

In this class we will focus mostly on time performance, though.

The second issue related to measuring is what "yardstick" to use in order to describe the size of the input to the program.

For instance, if a program in question tests primality of an integer number of arbitrary size then it's running time is a function of the "size" of its input. Typically, the "larger" the size of the integer to be tested the more time the program may need in order to determine if that number is prime or not.

Question: What is the size of number 1,951? 1,234,567,891? Why?

Here is a link to slides with derivation of the formula on the number of bits needed to represent a positive integer M:

http://csc.csudh.edu/suchenek/CSC311/Size_of_integer_M.pdf

It's equal to:

floor(lg₂ M) + 1

A primality test program reads an input integer number n > 1 and attempts no more than sqrt(n) - 1 division before deciding if n is prime or not.

The maximum number of divisions is floor(sqrt(n) - 1) = floor(sqrt(n)) - 1.

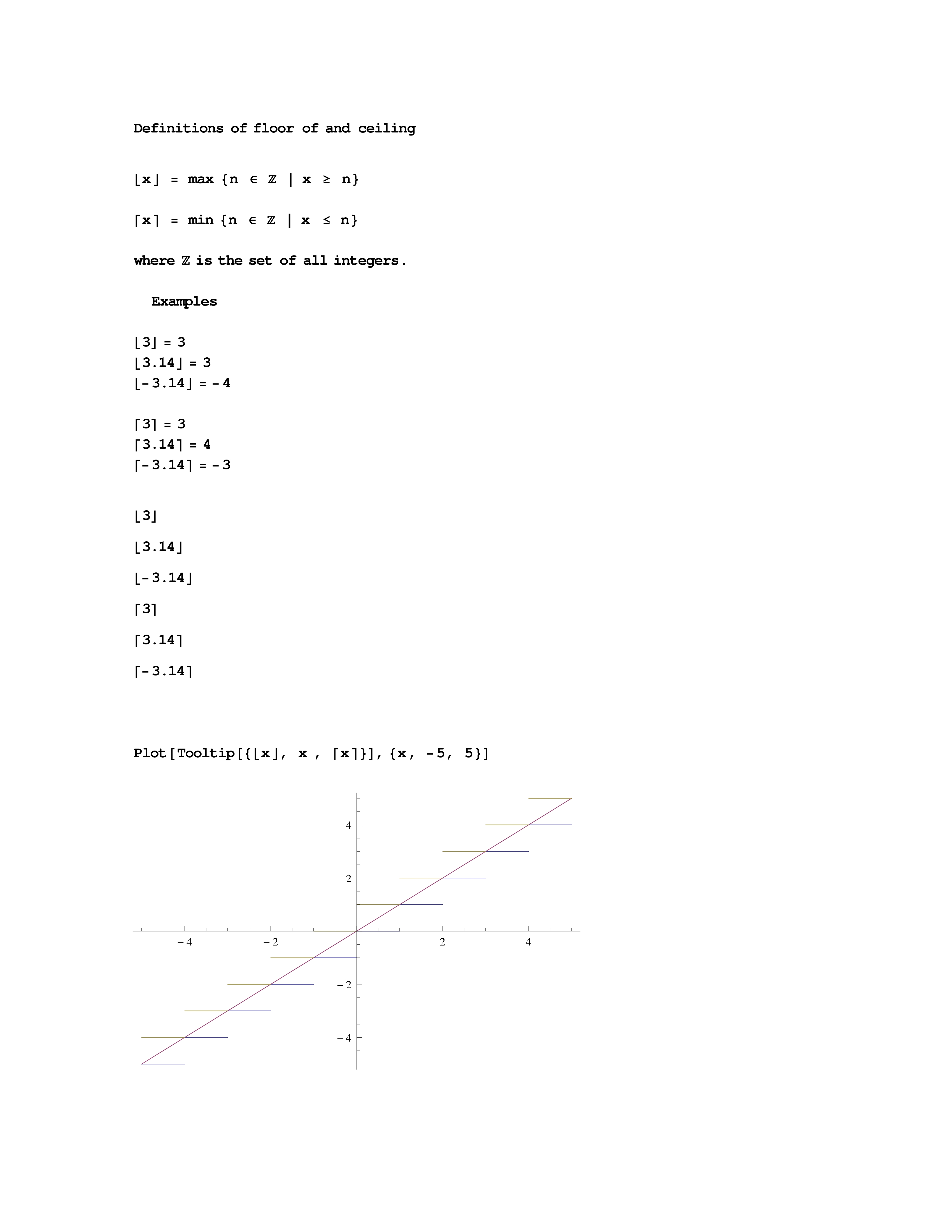

where floor is defined here:

http://csc.csudh.edu/suchenek/CSC311/FloorCeilingLog2.jpg

So, if the size of n is

m = floor(flog_2 n) + 1,

or is the least m that satisfies this inequality:

n <= 2^m - 1 (2 to power m minus 1 = the largest number with m bits),

then the running time T(m) of this primality test program is:

T(m) = floor(sqrt(n)) - 1 <= floor(sqrt(2^m - 1)) - 1
= ceiling(2^(0.5m)) - 2 = [approx.] 2^(0.5m) - 1

(= 2 to power m half).

It turns out that actually for every m > 0 there is n > 0 of size m such that

T(m) = floor(sqrt(2^m - 1)) - 1,

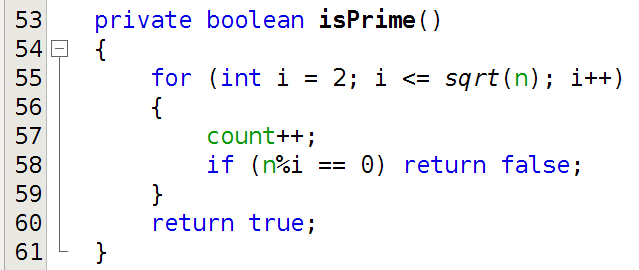

not just <= floor(sqrt(2^m - 1)) - 1. The program posted on page Programs experimentally verifies that equality.

So, the running time of this program is an exponential function. In other words, except for relatively small inputs (of the size, say, no more than 150 decimal digits), this program is impractical as it will require humongous amount of time (much more than one year on a 1 petaflops/sec supercomputer) to complete the task.

Hints: 1 year = (approx.) 3*10^7 sec.

           1 petaflops = 10^15 flops.

In addition of some programs being impractically slow, it may be very difficult to tell a fast one from a sluggish one, even if they are short and "simple".

Mathematica calculations of the running time of the above program

http://csc.csudh.edu/suchenek/CSC311/Mathematica/PrimTestRunningTime.nb
(PDF: http://csc.csudh.edu/suchenek/CSC311/Mathematica/PrimTestRunningTime.pdf)

Here is a "simple" recursive program whose performance appears very hard to evaluate:

    public static int f(int n)
     {
         if (n <= 1) return 1;
         if (n%2 == 0) return (f(n/2));
                else return (f(3*n + 1));
     }

For instance, the execution trace for n = 15 is:

n: 15, 46, 23, 70, 35, 106, 53, 160, 80, 40, 20, 10, 5, 16, 8, 4, 2, 1.

It is not known whether the above program always halts or falls into an endless loop for some integer n. Here is a link to a paper that reports on fairly recent status on the research on that problem: http://www.ams.org/bookstore/pspdf/mbk-78-prev.pdf

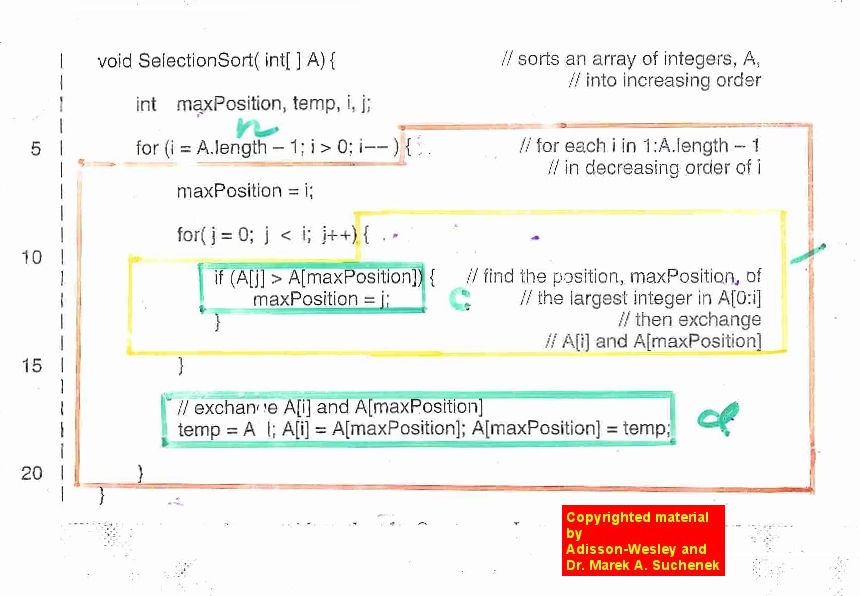

Example from the textbook: Selection Sort

Here is a link to one of the slides I discussed in class - computation of the number of times that the body of the innermost loop in the SelectionSort method is traversed:

http://csc.csudh.edu/suchenek/CSC311/RunTimeSelectionSort.pdf

Mathematica notebook doing the same:

http://csc.csudh.edu/suchenek/CSC311/Mathematica/InsertionSortTime.nb
(PDF: http://csc.csudh.edu/suchenek/CSC311/Mathematica/InsertionSortTime.pdf)

February 5, 2015

Function and its inverse:

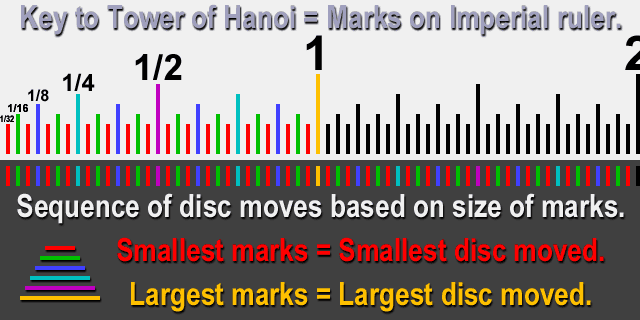

The running time T(n) of Hanoi Towers solution for n disks is double-exponential!

T(n) = 2^n - 1

See the comment after program in file http://csc.csudh.edu/suchenek/CSC311/Hanoi/Main.java
for proof.

But

size(n) = Floor(lg n) + 1 = approx. lg n,

n = approx. 2^size(n).

So,

T(size(n)) = 2^n - 1 = approx 2^(2^size(n)) - 1.

It may also be proved that the mentioned above solution is optimal, that is, it cannot be found in less than 2^n - 1 moves.

In other words, the size of the shortest ouput for any solution of the Hanoi towers problem is 2^n - 1.

So, the mentioned above solution is linear in the size of output.

February 17, 2015

Priority Queue

ADT PRIORITY QUEUE:

http://csc.csudh.edu/suchenek/CSC311/PriorityQueueIntro.pdf

PQ Sort:

http://csc.csudh.edu/suchenek/CSC311/Running_time_PQSort.pdf

Sorted array implementation

Linked implementation:

http://csc.csudh.edu/suchenek/CSC311/PriorityQueueImplementationLink.pdf

http://csc.csudh.edu/suchenek/CSC311/Def_list.pdf

Resizing and its cost for array implementation:

http://csc.csudh.edu/suchenek/CSC311/resizing.pdf

Mathematica made it easier:

http://csc.csudh.edu/suchenek/CSC311/Mathematica/Cost_resizing.nb

http://csc.csudh.edu/suchenek/CSC311/Mathematica/Cost_resizing_playbox.nb

PDF output of the above:

http://csc.csudh.edu/suchenek/CSC311/Mathematica/Cost_resizing.pdf

March 10, 2015

Chapter 6

Link to slides: http://csc.csudh.edu/suchenek/CSC311/Slides/StacksQueues.pdf

It's a copyrighted material, so the students in this class can read them but not to copy or distribute them.

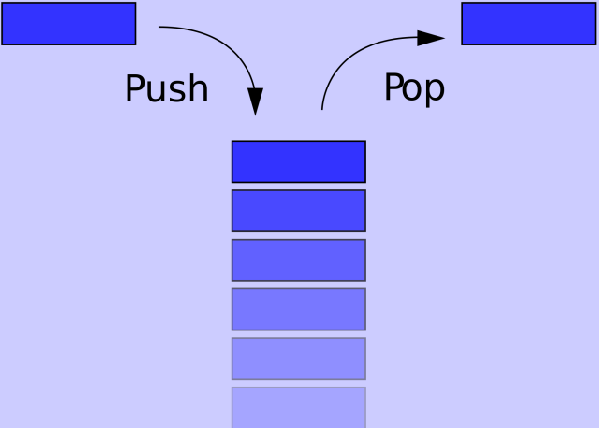

ADT STACK

Image from http://files.myopera.com/malifarsi2/blog/2000px-Data_stack_svg.png

More examples of stacks:

For a rainy day Java's stack of activation records More for a rainy day For the learned Official Human In creation ... Double stack Workout Rock stack Compuer stack Hardware stack Software stack Really good stack

ADT QUEUE

http://aplcenmp.apl.jhu.edu/Classes/Notes/Felikson/courses/605202/lectures/L4/

http://aplcenmp.apl.jhu.edu/Classes/Notes/Felikson/courses/605202/lectures/L4/

http://aplcenmp.apl.jhu.edu/Classes/Notes/Felikson/courses/605202/lectures/L4/

http://www.math.bas.bg/~nkirov/2012/NETB201/slides/ch04/ch04.html

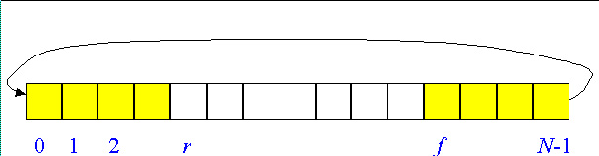

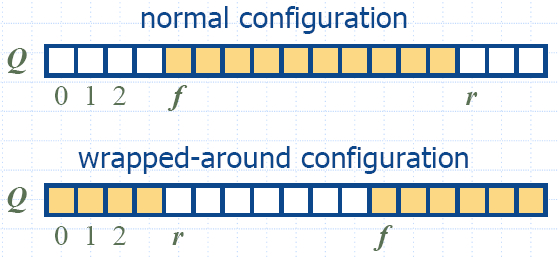

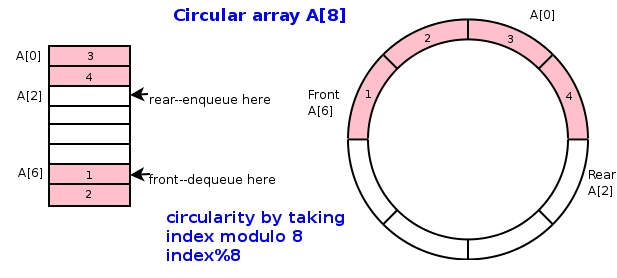

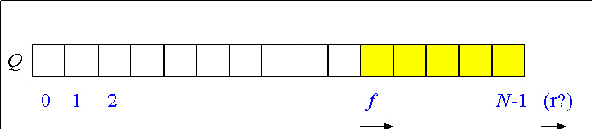

The figure below is a modification of http://cs.nyu.edu/~gottlieb/courses/2004-05-fall/alg/class-notes.html

An error in Program 6.22 Circular Queue Representation page 185 of the textbook:

http://csc.csudh.edu/suchenek/CSC311/Error_in_queue.pdf

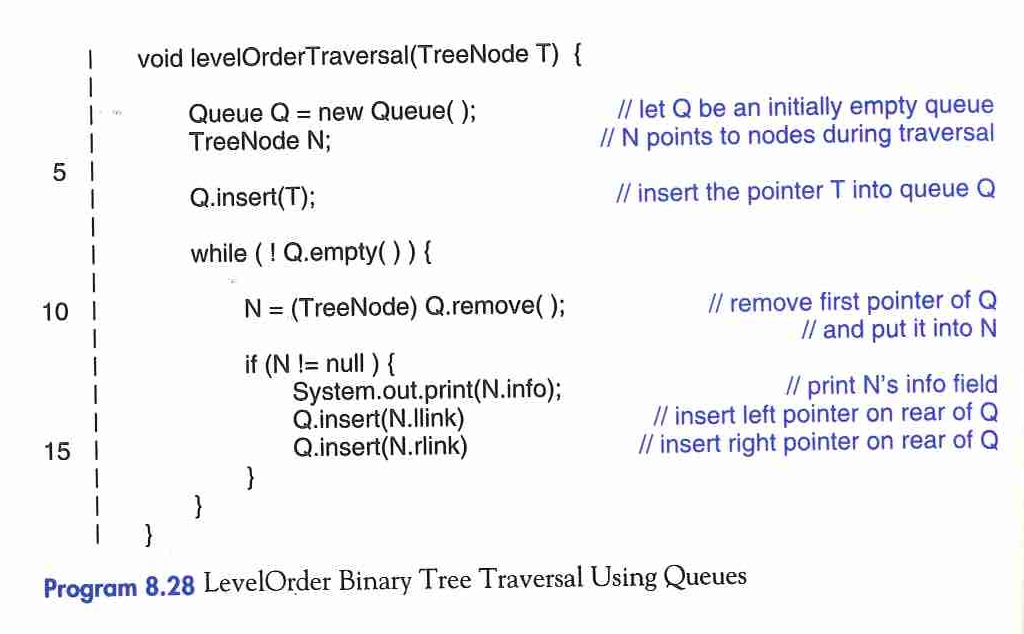

One example of use of ADT QUEUE:

http://csc.csudh.edu/suchenek/CSC311/Traversal2.jpg

March 24, 2015

ADT LIST

A definition of ADT LIST:

http://csc.csudh.edu/suchenek/CSC311/ADT_LIST.TXT

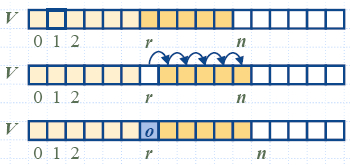

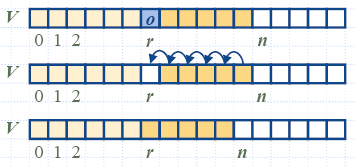

Insert to an delete from a LIST implemented as an array:

(Above figures are from:
http://www.math.bas.bg/~nkirov/2007/NETB201/slides/ch05/ch05.html)

A definition of (singly-linked) list:

http://csc.csudh.edu/suchenek/CSC311/Def_LIST_POSITION

POSITION and Insert:

http://csc.csudh.edu/suchenek/CSC311/SLL_POS_and_Insert.pdf

http://csc.csudh.edu/suchenek/CSC311/SLL_POS_and_Delete.pdf

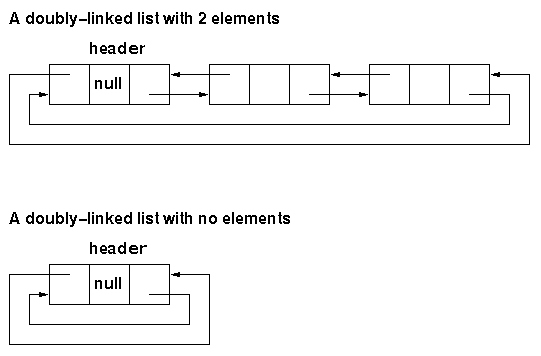

A definition of doubly-linked list:

http://csc.csudh.edu/suchenek/CSC311/Axiomatic_def_DLL.txt

https://staff.fnwi.uva.nl/a.j.p.heck/Courses/JAVAcourse/ch4/sss1_2_3.html

http://rpmedia.ask.com/ts?u=/wikipedia/commons/0/07/Doubly_linked_list_insert_after.png

The following are my modification of the linked above material. It's all a copyrighted material, so the students in this class can read them but not to copy or distribute them.

This link has been temporarily disabled:
http://csc.csudh.edu/suchenek/CSC311/Slides/DLL_insert.pdf

April 16, 2015

Trees

Link to slides:
http://csc.csudh.edu/suchenek/CSC311/Slides/Trees.pdf

It's a copyrighted material, so the students in this class can read them but not to copy or distribute them.

Three definitions of tree and its properties:

http://csc.csudh.edu/suchenek/CSC311/Def_tree.txt

Sequential representation of contiguous binare tree viewed as a set of binary sequences:

http://csc.csudh.edu/suchenek/CSC311/TreeSequentialRepresentation.pdf

Here is a link to a rigorous computation of the running times of insert and remove on heaps; Sections 1.1 through 1.6. are mandatory readings; details of calculations/derivations in Sections 1.7 through 1.9 are optional, but the students are responsible for all "big Theta" facts:

It's a copyrighted material, so the students in this class can read them but not to copy or distribute them.
http://csc.csudh.edu/suchenek/CSC311/Balanced_tree.pdf

Here are the slides for the above; Sections 1.1 through 1.6. are mandatory readings; details of calculations/derivations in Sections 1.7 through 1.9 are optional, but the students are responsible for all "big Theta" facts:

It's a copyrighted material, so the students in this class can read them but not to copy or distribute them.
http://csc.csudh.edu/suchenek/CSC311/Balanced_tree_slides.pdf

Animation that explains how heap is used in sorting:

Note: The bottom line is that you are supposed to study and understend the Java code posted on class website. This animation visualizes in some detail the idea of heapsort. Actual details in the Java code posted on class website may be slightly different.

http://upload.wikimedia.org/wikipedia/commons/4/4d/Heapsort-example.gif

Optional: Another website with animation (continuous or step-by-step) of Heapsort with fast heap-construction phase:

http://www.ee.ryerson.ca/~courses/coe428/sorting/heapsort.html

Animation that shows how Heapsort sorts:

http://upload.wikimedia.org/wikipedia/commons/1/1b/Sorting_heapsort_anim.gif

Optional: Mathematica calculations of the sum of floors of logarithms base 2 of consecutive integers (used to compute running times of insert and remove on heaps):

http://csc.csudh.edu/suchenek/CSC311/Mathematica/Heap_performance.nb

http://csc.csudh.edu/suchenek/CSC311/Mathematica/Heap_performance.pdf

Tree traversal:

http://www.cosc.canterbury.ac.nz/mukundan/dsal/BTree.html

Programs from textbook:

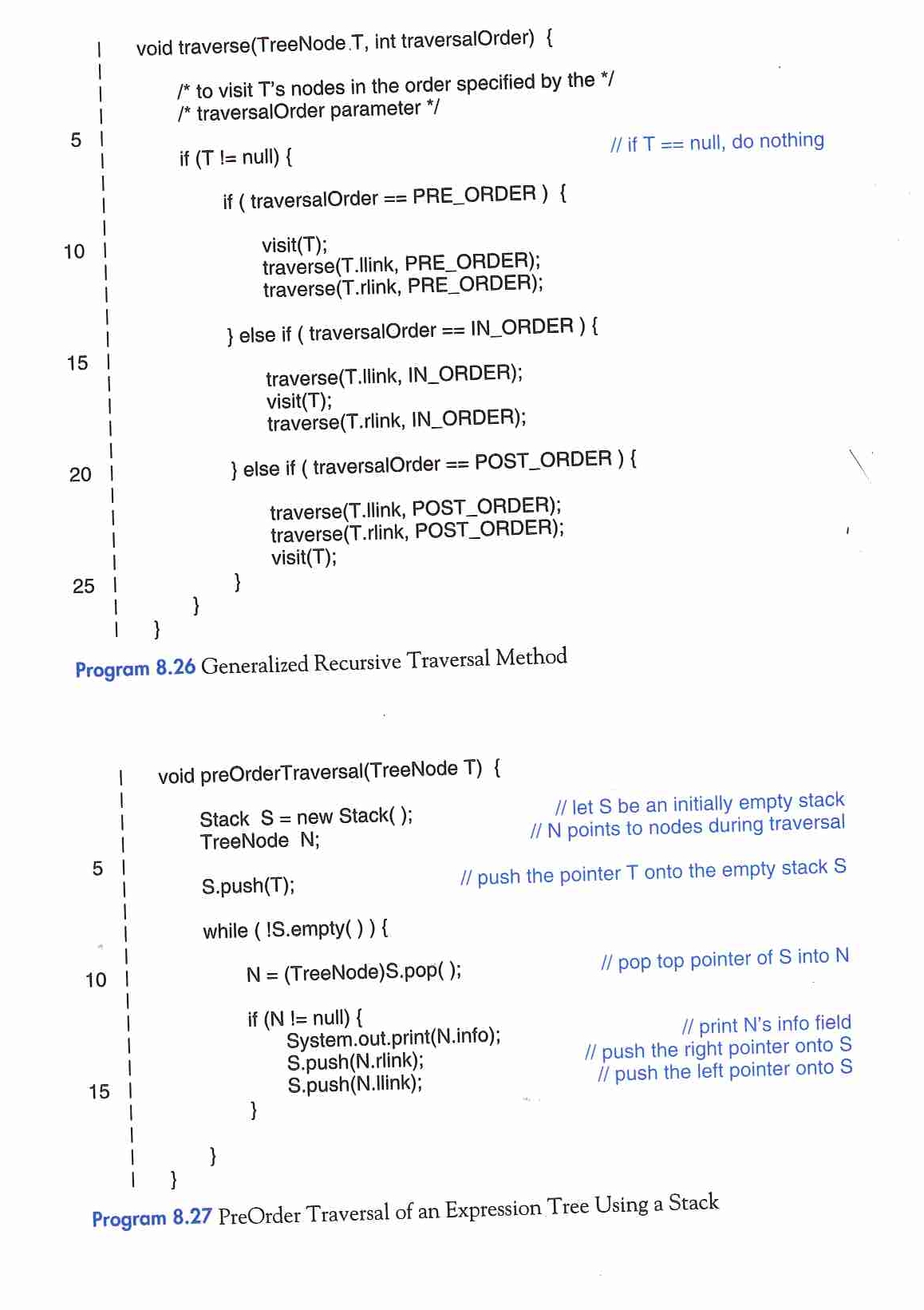

http://csc.csudh.edu/suchenek/CSC311/Traversal1.jpg

http://csc.csudh.edu/suchenek/CSC311/Traversal2.jpg

Definition of binary search tree:

http://csc.csudh.edu/suchenek/CSC311/Def_BS_tree.txt

Playing with BS Trees:

http://nova.umuc.edu/~jarc/idsv/lesson4.html

http://www.ibr.cs.tu-bs.de/courses/ss98/audii/applets/BST/BST-Example.html

Here is an example of deletemin() followed by delete(20) from a binary search tree:

http://csc.csudh.edu/suchenek/CSC311/BST_delete.pdf

BST_sort: the same as PQ_sort, except that the second phase (a sequence of removes) has been replaced with in-order traversal of the BS tree constructed in the first phase.

Related topic: QuickSort (an emulation of BS-tree sort):

Simple Split:

private static int Split(int[] L, int lo, int hi)
            //Uses the occupant x at index lo in array L as pivot,
            //sends all elements < x to the begining of the range (lo, hi), and
            //all elements >=x to the end of that range
{
    int splitPoint = lo;
    int x = L[splitPoint];
    for (int i = lo+1; i <= hi; i++)
    {
        if (Comp(L[i], x)) //need to move L[i] before split point
                {
            L[splitPoint] = L[i];
            cnt2.incr();
            splitPoint++;
            L[i] = L[splitPoint];
            cnt2.incr();
        }
    }
    L[splitPoint] = x;
    cnt2.incr();
    return splitPoint;
}

Demo Split:

Array size = 20; max no. of inversions = 190
Array:
500 400 621 229 702 40 243 312 247 46 711 241 637 898 24 15 872 595 182 635
95 inversions
Start Split: x = 500
    400 621 229 702 40 243 312 247 46 711 241 637 898 24 15 872 595 182 635
400     621 229 702 40 243 312 247 46 711 241 637 898 24 15 872 595 182 635
400 229     621 702 40 243 312 247 46 711 241 637 898 24 15 872 595 182 635
400 229 40     702 621 243 312 247 46 711 241 637 898 24 15 872 595 182 635
400 229 40 243     621 702 312 247 46 711 241 637 898 24 15 872 595 182 635
400 229 40 243 312     702 621 247 46 711 241 637 898 24 15 872 595 182 635
400 229 40 243 312 247     621 702 46 711 241 637 898 24 15 872 595 182 635
400 229 40 243 312 247 46     702 621 711 241 637 898 24 15 872 595 182 635
400 229 40 243 312 247 46 241     621 711 702 637 898 24 15 872 595 182 635
400 229 40 243 312 247 46 241 24     711 702 637 898 621 15 872 595 182 635
400 229 40 243 312 247 46 241 24 15     702 637 898 621 711 872 595 182 635
400 229 40 243 312 247 46 241 24 15 182     637 898 621 711 872 595 702 635
End Split
400 229 40 243 312 247 46 241 24 15 182 500 637 898 621 711 872 595 702 635
56 inversions
splitPoint = 11

Here is a link to samle runs of several sorting algorithms presented in forms of folk dances from Central Europe:

http://www.youtube.com/user/AlgoRythmics

An example of a balanced binary search tree:
